| Quantity: | |
|---|---|
107210-107250
| Product Detial | ||

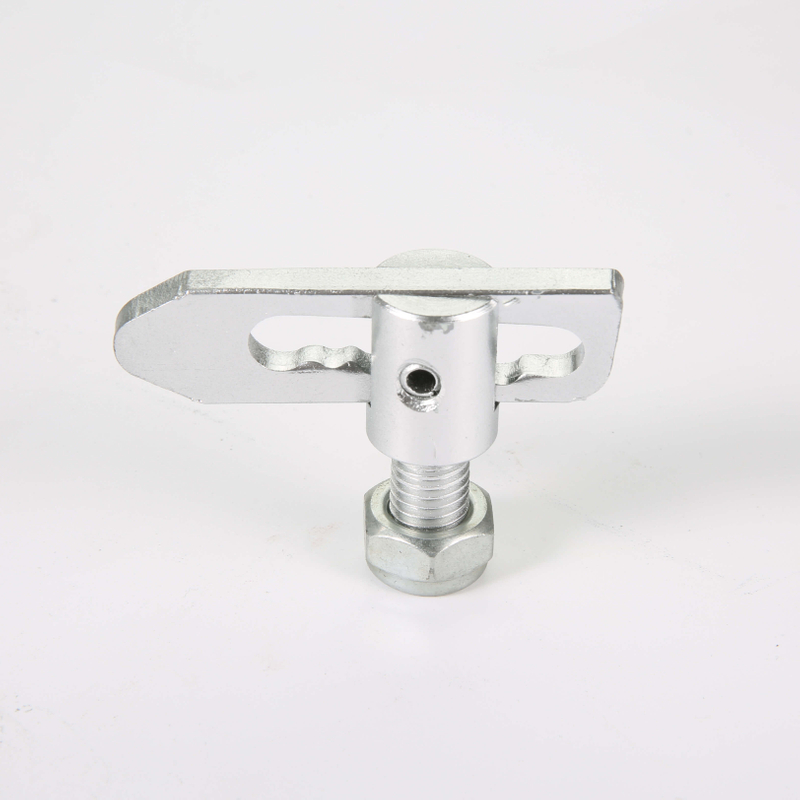

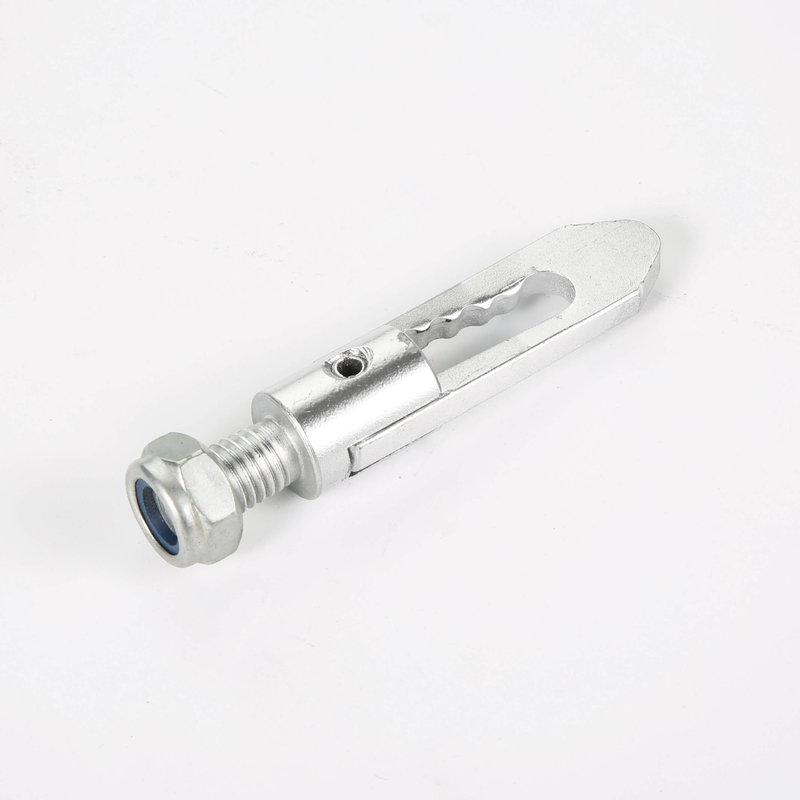

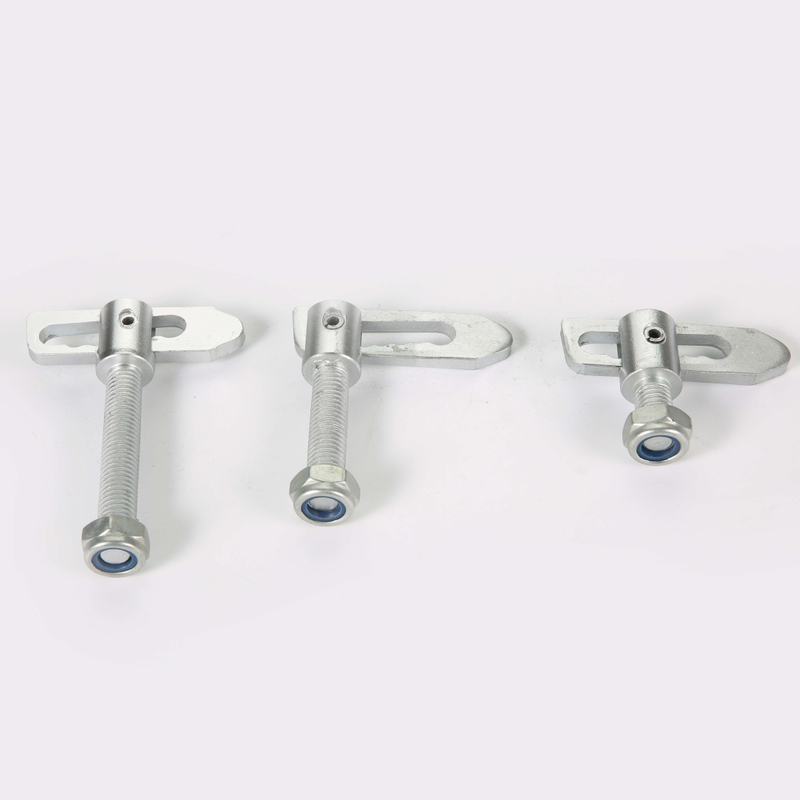

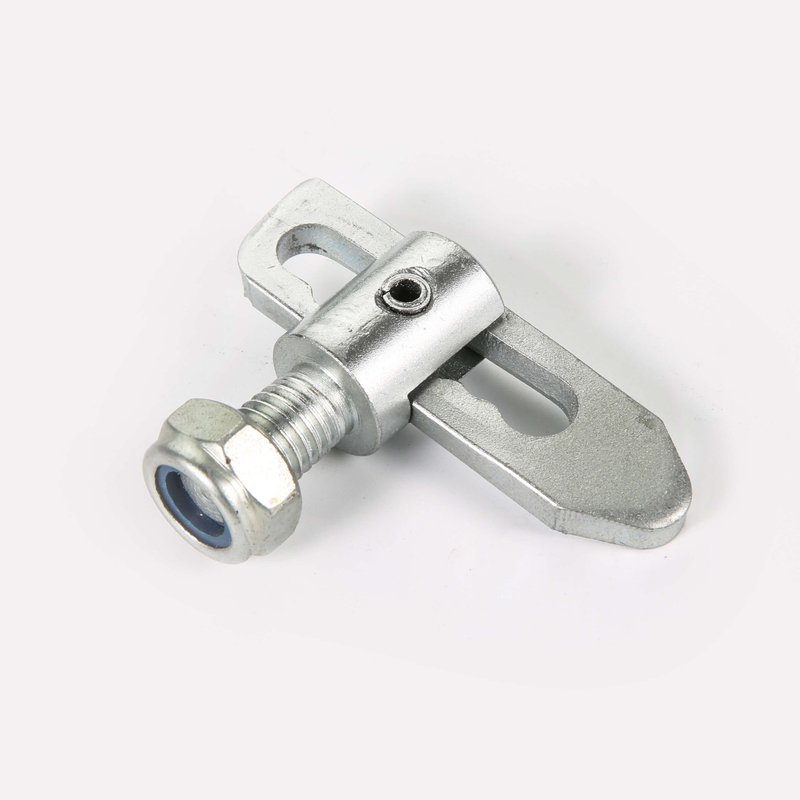

| Parts: | Trailer Locks |
| OEM No.: | OEM Service Provided | |
| Brand Name: | HITOAUTO | |
| Material： | Steel | |
| Weight: | Zinc Plated | |
This lock is suitable for, toolboxes, sealed doors, special vehicles and container vehicles.
Benefit | Can be customized |
| Helps keep the shipping surface smooth, | |
| light in mass | |
| Easy to install |
it is popular for areas where there is a need to keep the loading deck surface free from protruding fittings, e.g. in case of multi-purpose cargoes
The height of the built-in door lock is not as high as that of a conventional twist-lock base, so it is popular for areas where there is no protruding fitting on the surface of the loading deck, such as in the case of multi-purpose goods.
| Ltem No. | 107210 | 107220 | 107230 | 107240 | 107250 | 10760 |
| L1 | 71.5mm | 71.5mm | 71.5mm | 71.5mm | 50.5mm | 50.5mm |
| L2 | 12.5mm | 21mm | 25mm | 72mm | 21mm | 10mm |
| W | 21mm | 21mm | 21mm | 21mm | 14mm | 14mm |
| D | Ф12 | M12 | M12 | M12 | M8 | M8 |
| Weight | 0.085KG | 0.090KG | 0.095KG | 0.11KG | 0.06KG | 0.06KG |
| Product Detial | ||
| Parts: | Trailer Locks |
| OEM No.: | OEM Service Provided | |
| Brand Name: | HITOAUTO | |
| Material： | Steel | |
| Weight: | Zinc Plated | |
This lock is suitable for, toolboxes, sealed doors, special vehicles and container vehicles.
Benefit | Can be customized |
| Helps keep the shipping surface smooth, | |
| light in mass | |
| Easy to install |
it is popular for areas where there is a need to keep the loading deck surface free from protruding fittings, e.g. in case of multi-purpose cargoes
The height of the built-in door lock is not as high as that of a conventional twist-lock base, so it is popular for areas where there is no protruding fitting on the surface of the loading deck, such as in the case of multi-purpose goods.
| Ltem No. | 107210 | 107220 | 107230 | 107240 | 107250 | 10760 |
| L1 | 71.5mm | 71.5mm | 71.5mm | 71.5mm | 50.5mm | 50.5mm |
| L2 | 12.5mm | 21mm | 25mm | 72mm | 21mm | 10mm |
| W | 21mm | 21mm | 21mm | 21mm | 14mm | 14mm |
| D | Ф12 | M12 | M12 | M12 | M8 | M8 |
| Weight | 0.085KG | 0.090KG | 0.095KG | 0.11KG | 0.06KG | 0.06KG |
